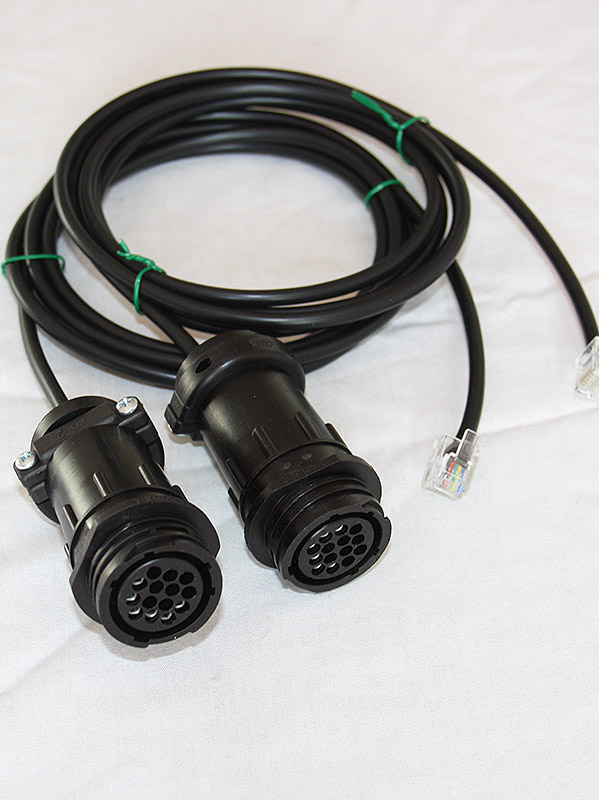

SMEMA Female Dongles (Pair)
These dongles are intended to be purchased with, or by customers that already have, any of the SMEMA Adaptor Family products;
They feature SMEMA Female Sockets, so are intended to be used with existing extension cables and are slightly longer than the SMEMA Male Dongles alternative.
You can create your own cables by using the wiring diagram shown below. Your factory IT professional may have a crimp tool for the RJ12 connection.
SMEMA Male Dongles are also available which are intended for direct SMT equipment connections and are slightly shorter to keep the installation neater.
- MPN
- B514512B
- HS Code
- 8544 4290 90
- Length
- 1.5 Metre
- End 1
- SMEMA Female Socket
- End 2
- RJ12 Male Plug
SMEMA
1
2
3
4
7
8
RJ12
1
2
3
4
5
6
Colour
White
Blue
Green
Yellow
Red
Black
Use
Ready (+)
Ready (-)
Good (+)
Good (-)
Bad (+)
Bad (-)
The colour coding is not important and is not an industry standard. Pre-August 2023 the colour coding was 1. White, 2. Black, 3. Red, 4. Green, 5/7. Yellow, 6/8 Blue
Cables
Mounts
- SMEMA Adaptor Family Din Rail Mount
- SMEMA Adaptor Family Magnetic Mount
- SMEMA Adaptor Family Wall Mount
